Advantages:

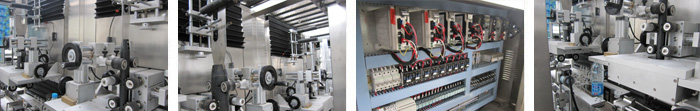

The machine itself has two sets of standard mechanism, one is used to set the bottle body, a bottle mouth is set. The stainless steel structure: made of stainless steel SUS304, simple structure, beautiful appearance, easy to clean, the water does not rust. The unique label positioning device: to ensure accurate positioning sleeve labeling. The use of modular design, mold the chopstick control, precision, high-speed sleeve. The use of high-quality touch screen operation section, implementation of operating, convenient, fast. The high degree of automation, simple to use, only one person is needed to operate, easy to maintain. The Panasonic servo system, servo control system to ensure high speed, sets of standard error free.
Technical data:
|
Electrical Source |
Single phase220V |
|
Power |
5KW |
|
Dimensions |
3200×1180×2000(mm) |
|
Packing Speed |
100-350BPM(MAX) |
|
Bottle Dimension |
ф28-ф125*300（H）mm |
|
Label Thickness |
0.035-0.07mm |
|
Applied Material |
PVC PET OPS |
|
Applied Label Thickness t |
30-250mm（MAX） |
|
Main Machine Weight |
700KG |
