Application range：
This type ot machine is suit for beverage, drinking water,beer wine and infusion bottle ect. packaging，which can be packed without tray and with a firm and beautiful appearance
Advantages：
Applying imported PLC which can control the machine automatically，
with stabIe performance precise control
With the capacity of feeding and sorting bottles shrinking and cooling
shaping automatically
Inductive switch control the feeding of film wrich can control the
length of film and reduce the consumption
Imported tranducer control for the convey motor, which can can
realize stepless speed reguation
|

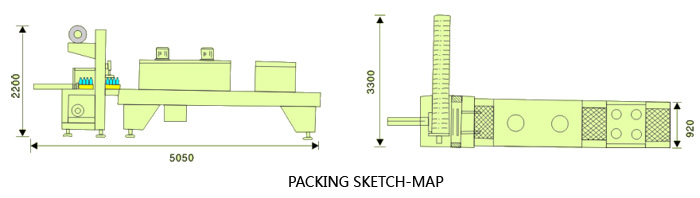

The machine dimension |
L5050*W3300*H2100 | |
|
The weight |
1.2t | |
|
Heat shrinkable furnace size |
L3700*W920*H1750 | |
|
The biggest package size |
L420*W280*H350 | |
|
Packing speed |
8-12package | |
|
Conveyor belt height |
920（adjustable100mm） | |
|
The rated power |
380V 50HZ | |
|
Work pressure |
0.6-0.8Mpa | |
|
The engine power |
20kw | |
