Advantages:

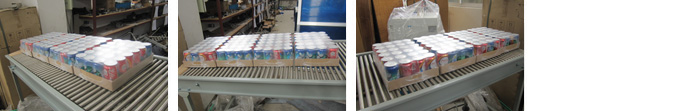

The aircraft used in the pallet with film packaging,widely used in drinks,beer,chemical,food,pharmaceutical and other industries.
The whole pneumatic expansion support film roll,for the film quickly takes about two minutes to change the film.
The film tension transportation,smooth,and precise control of the cutting film neat incision.
Serve control technology can maintain the mechanism of precise synchronization of advanced, reliable delivery.
The heating box, reasonable structure, heat insulation, high precision of temperature control.
Supporting German Siemens, Germany P+F, Japan SMC, Italy motorcycle Rio, the world's most advanced control
System components, equipment, stable operation.
Mechanical transmission components using after heat treatment of stainless steel or carbon steel and other materials; spraying the surface quality,
The antirust performance.
Technical data:
|
Deice dimensions |
13500×1215×2150H mm |
|
max size of packaging |
L420*W280*H350 |
|
Shrink film materials |
PE、PVC、POF |
|
Shirnk film thickness |
80~90um |
|
highest yield per minute |
The 35-40 package (continuous variable speed) |
|
highest yiled |
The heating box (48kW 48kw/220v temperature, heat 24kw) |
|
compressde air pressur |
0.4~0.7Mpa; gas; 0.25NM3/min |
|
conveyor belt largest |
600mm, height of 1120~1185 (mm) (adjustable) |
|
Voltage requirements |
380/220V |
|
Equipment |
6500kg |
